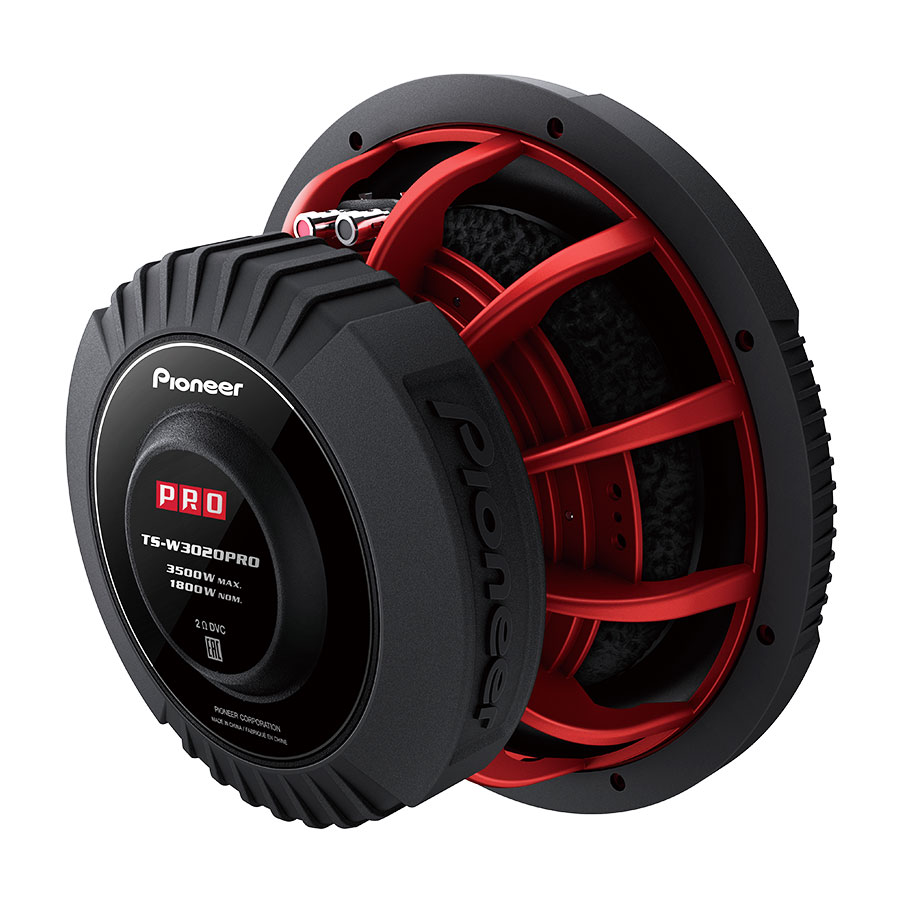

Pioneer TS-W3020PRO Pro Series 12″ 3500w 1800rms Subwoofer

Pioneer TS-W3020PRO Pro Series 12″ 3500w 1800rms Subwoofer

PRO Samurai series – 12″ High Efficiency Subwoofer. (3500 W).

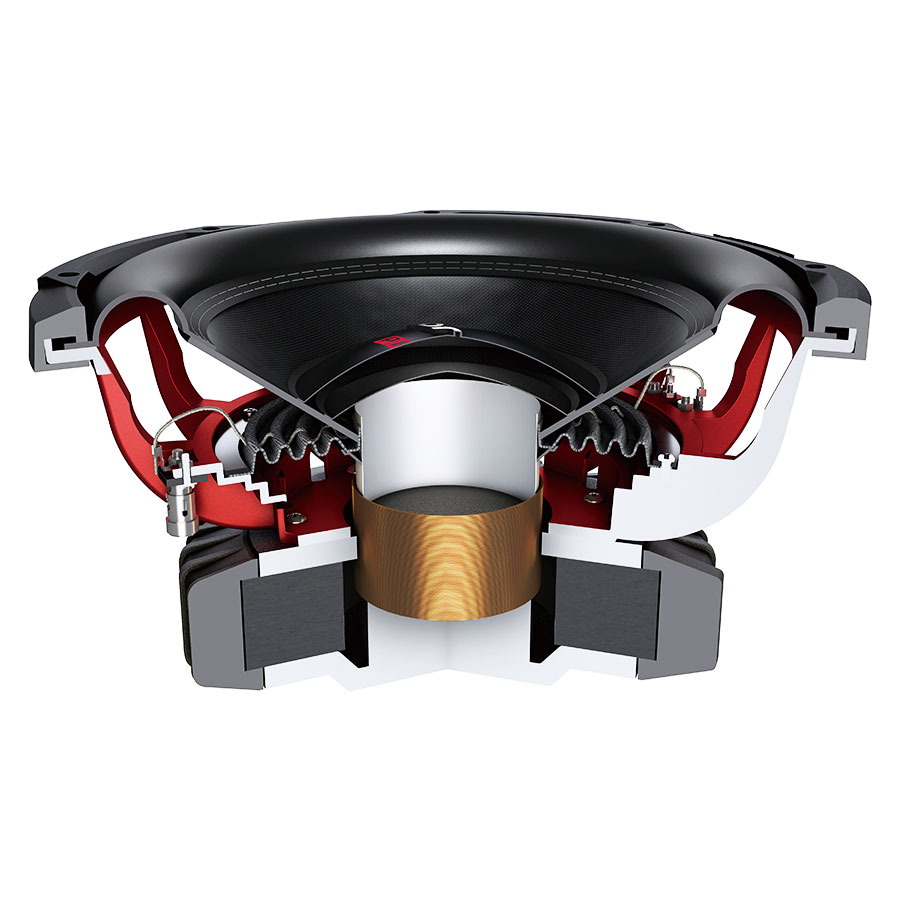

PRO Samurai series TS-W3820PRO subwoofer has a nominal power 1800 W and double coil with impedance 2 + 2 ohms. The wide stitched-reinforced urethane surround provides long cone stroke and a secure fit at high volumes. The 4-layer copper-clad aluminum voice coil allows to achieve weight reduction and high sensitivity. The high quality aluminum basket construction dissipates heat away from the voice coil. Big double magnet provides high power.

Size 30 cm

Type Subwoofer

Maximum power 3500 W

Continuous Power Output 1800 W

Frequency response 20 Hz to 200 Hz (In-Car)

Sensitivity 86 (1 W/In-car) dB

Impedance 1 Ω or 4 Ω

Mounting Depth 154 mm

Woofer Cut-Out Hole Φ282 mm

Woofer material Paper

Surround Urethane

Spider Polyester Fibre

Voice Coil type 4-layer Long Copper

Voice Coil bobbin type Aluminium

Terminals Push

Magnets Ferrite
