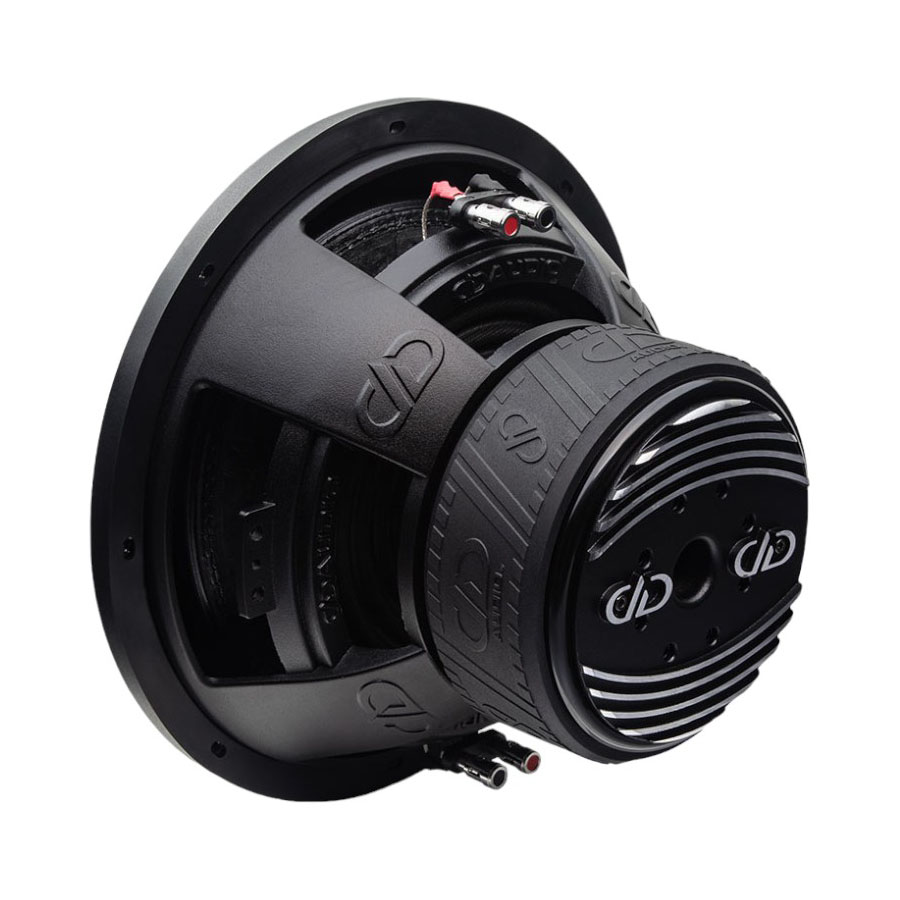

Digital DesignDD-612F D4 Power Tuned 12″ 1000rms 4ohm Subwoofer

Digital DesignDD-612F D4 Power Tuned 12″” 1000rms 4ohm Subwoofer

The 600 Series latest revision is a mean mother “f”. In the previous “e” revision they got bigger and better; and in this latest “f” revision they receive precision engineered, thermal cooling enhancements of major significance along with some design work that is literally cutting edge. DD is pushing the already highly efficient 600 subwoofers to meet our evolving performance standards to ensure longer periods of loud, continuous play.

Speaker Size (In): 12

Watts RMS: 1000

Watts Peak: 3000

Impedance: D2 / D4

VCD (In): 2.5

Piston Diameter (In): 10.25

Fs (Hz): 31

Qms: 5.06

Qes: 0.4432

Qts: 0.4075

Vas (Liters): 81.16

Xmech (MM): 60

Xmax (MM): 22

Frame OD (In): 12.875

Frame OD w/Gasket (In): 13

Mounting Diameter (In): 11.5

Mounting Depth (In): 7.375

Motor Diameter (In): 7

Motor Depth (In): 3.375

Woofer Displacement (CuFt): 0.1

Ported Enclosure (CuFt): 1.75 – 2.75
